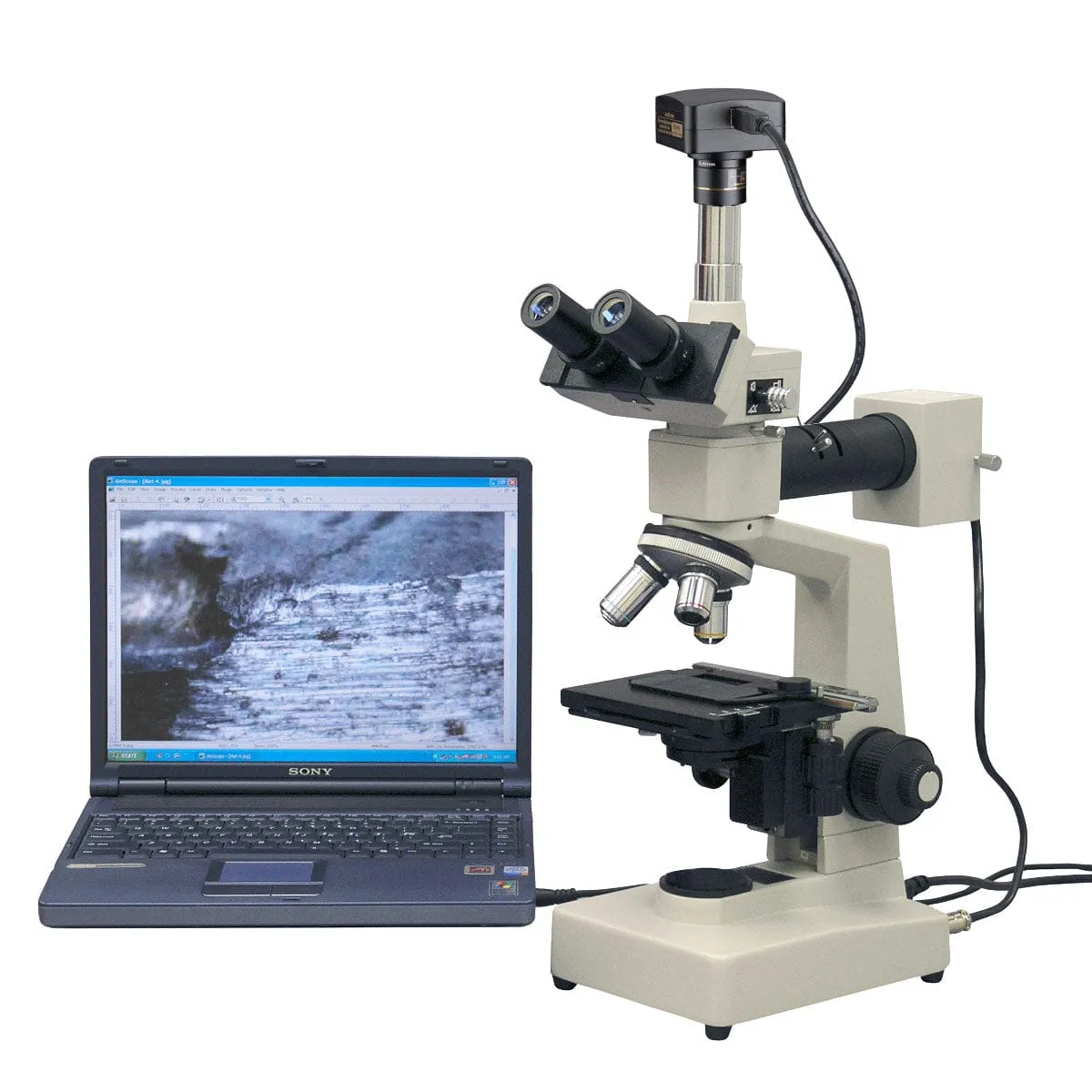

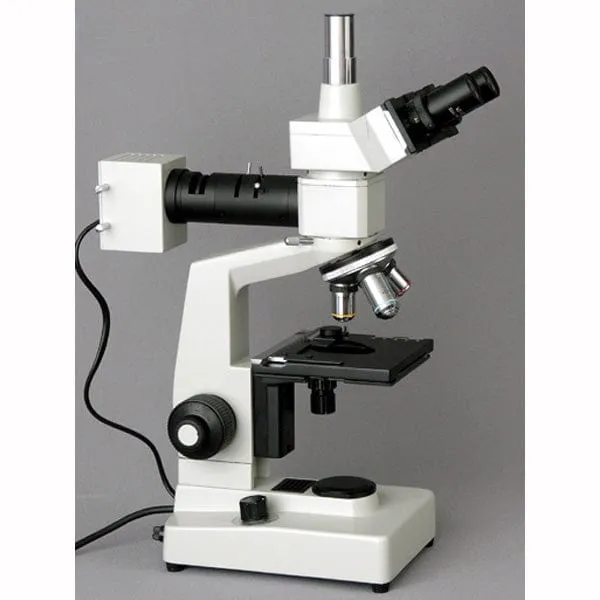

This is a brand new trinocular metallurgical microscope that offers five magnification settings, 40X, 100X, 250X, 400X & 1000X, and advanced features. It comes with a 30 degree inclined 360 degree swiveling trinocular head with a dedicated photo-port. The episcopic illumination system features both field- and aperture-diaphragm control for efficient, even lighting. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality-control applications.
The 16MP USB 3.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Features:
High quality trinocular professional upright metallurgical metallographic microscope
Perfect for detail examination and micro-analysis of surface structures of metallic materials!
Excellent for quality control in industrial and research applications including silicon wafer inspection and foundries!
Five total magnification settings: 40X, 100X, 250X, 400X & 1000X

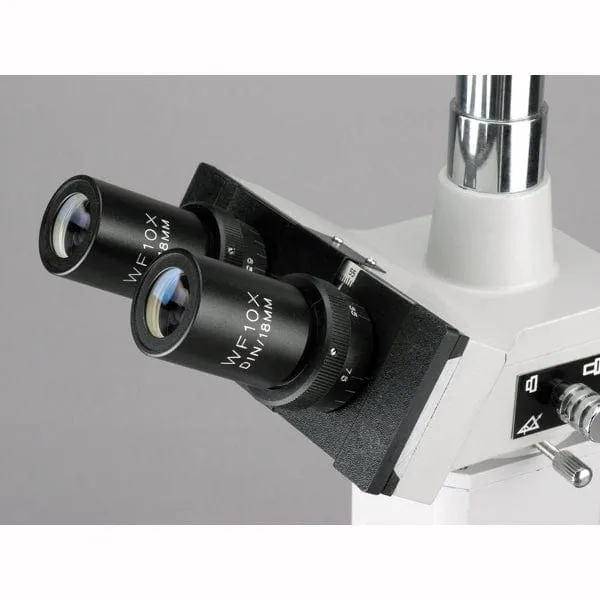

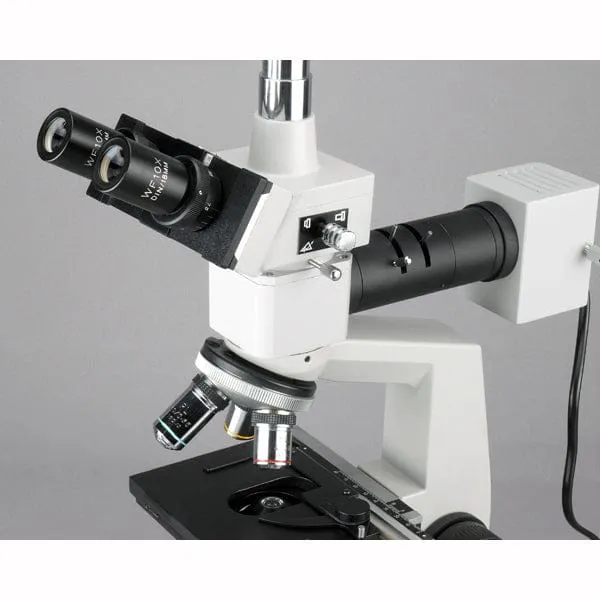

30 degree inclined 360 degree rotatable sliding trinocular head
Fully coated optical system with high resolution
23mm photo port for camera
Adjustable interpupillary distance
Adjustable diopters on both eye tubes
Three superior quality PLAN DIN objectives, 4X, 10X and 40X (spring)
Two pairs of widefield eyepieces, 10X and 25X
Advanced epi-illumination design offers excellent halogen illumination and optimal image clarity
Episcopic illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls

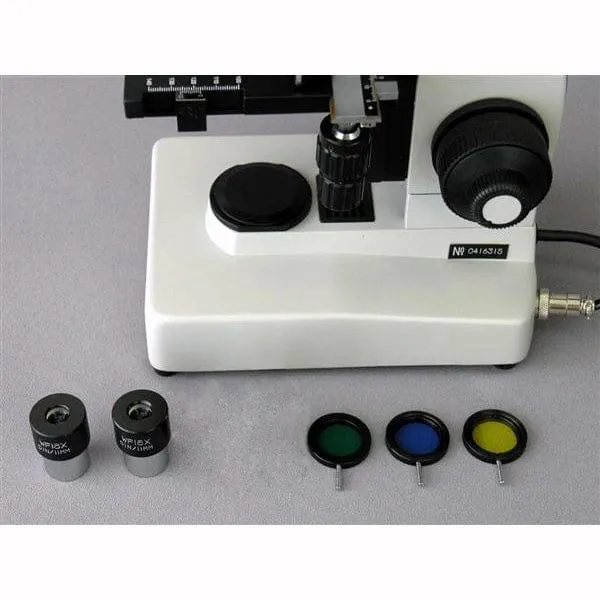

Yellow, blue, green, and frosted filters included
Coaxial coarse and fine focusing system
Dual side focusing controls
Focusing tension control mechanism
Locking mechanism for controlling coarse focusing range and protecting objectives and specimens
Large graduated mechanical stage with stain resistant finish
Low position coaxial X-Y stage traveling controls
Solid metal frame construction with stain resistant enamel finish
Full optical glass elements
Precise ground glass lenses
All metal mechanical parts
Manufactured under ISO 9001 quality control standards
Excellent five (5) year factory warranty
Unbeatable lowest price guaranteed or the difference back!
Satisfaction guaranteed or your money back!
Specifications:
Nosepiece: Quadruple
Focusing Range: 1-9/16" (40mm)
Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
Mechanical Tube Length: 6-5/16" (160mm)
Head: 30 degree inclined trinocular
Trinocular Port: 23mm universal/standard photo tube
Eyepieces: WF10X (18mm field of view), Widefield 25X
Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA)
Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)
Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
Vernier Division: 0.004" (0.1mm)
Illumination: 20W halogen
Power Supply: 110V
Camera Specifications:
Sensor: Aptina (color)
Sensor Type: CMOS
Sensor Size: 6.18x4.66mm
Pixel Size: 1.335
Resolution: 16.0MP
Frame Rate: 26fps @ 1536x1160, 15fps @ 2320x1740, 6fps @ 4632x3488
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Software Specifications:
OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS X, Linux kernel 3.13
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
Packing List:
One Trinocular Metallurgical Microscope Body with Episcopic Illumination System
One Pair of Widefield 10X Eyepieces
One Pair of Widefield 25X Eyepieces
Three Plan Objectives: 4X, 10X, 40X
Four Filters: Yellow, Blue, Green and Frosted (built-in already)

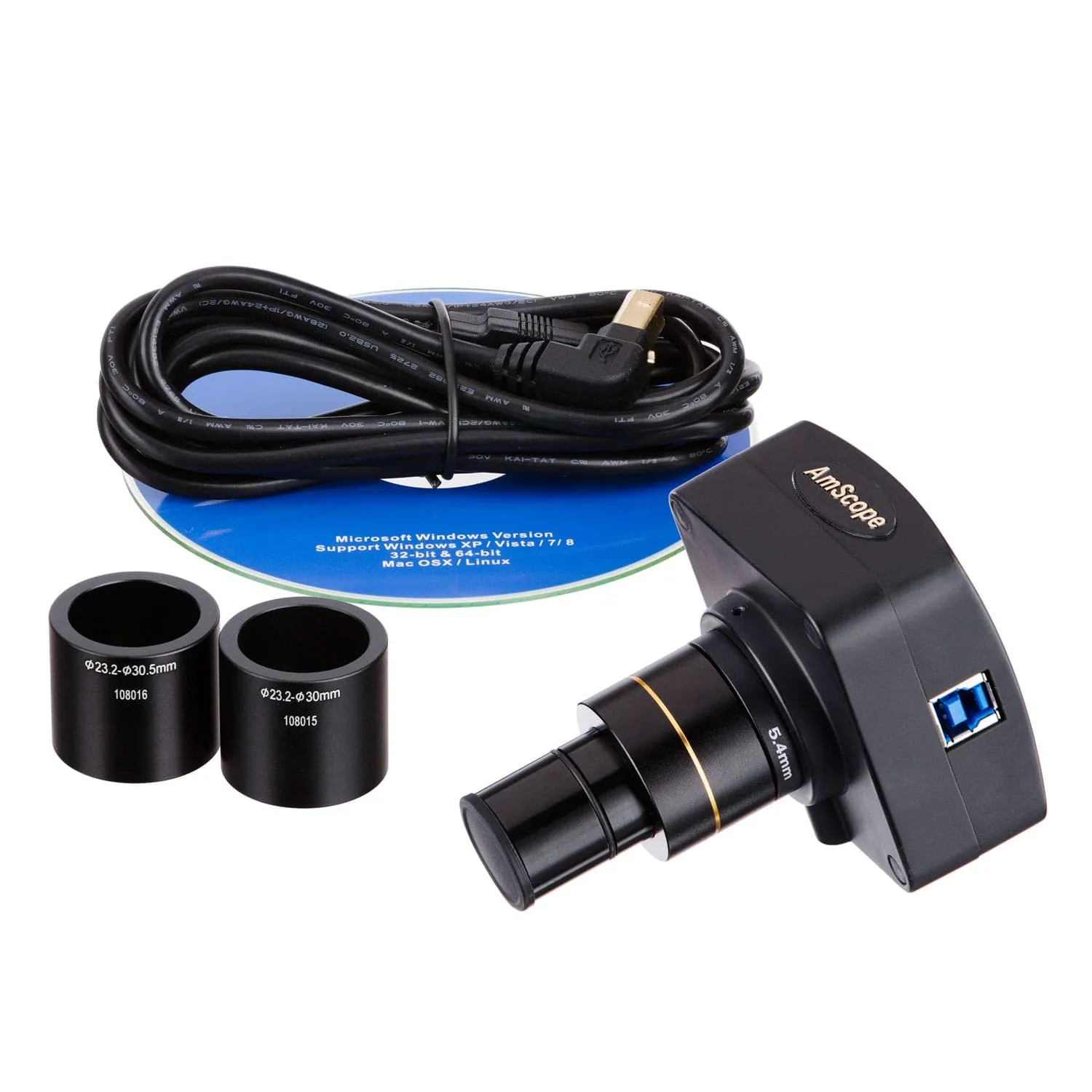

One 16MP USB3.0 Digital Camera
One Reduction Lens
Two Sizing Adapters
One USB Cable
One Software CD
